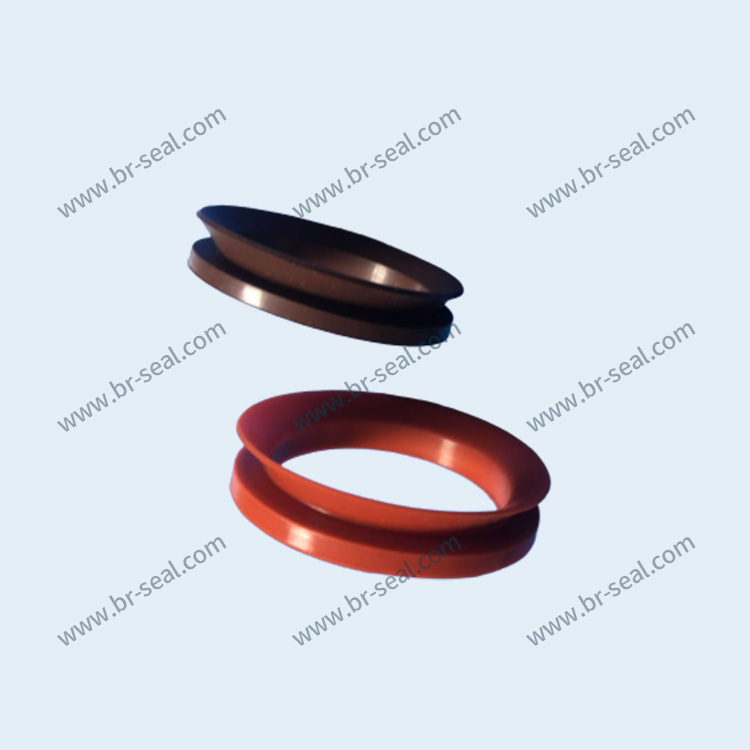

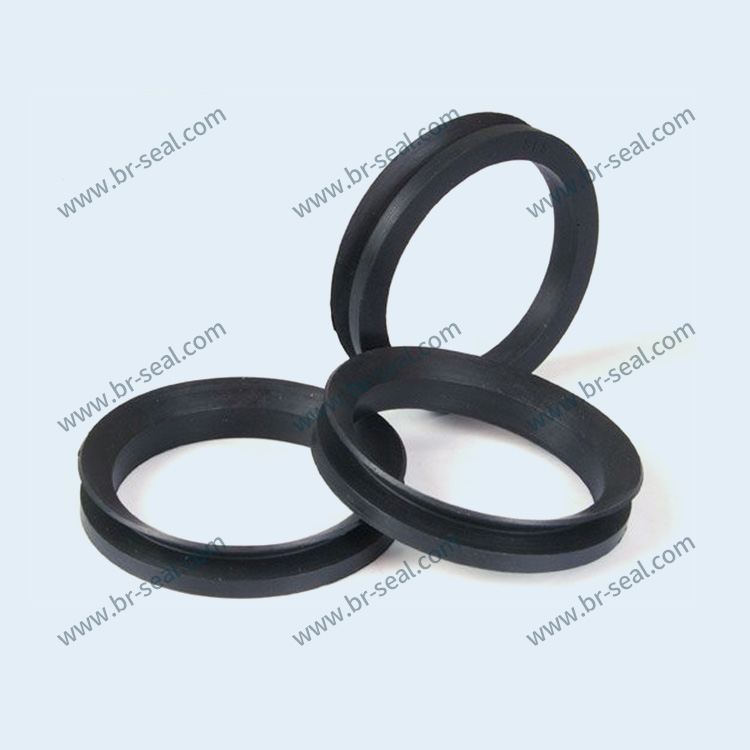

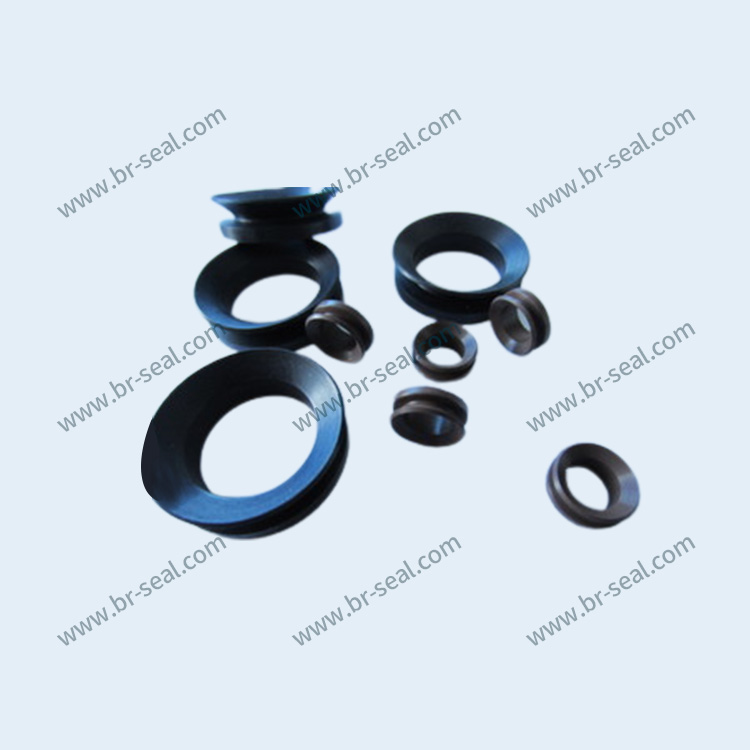

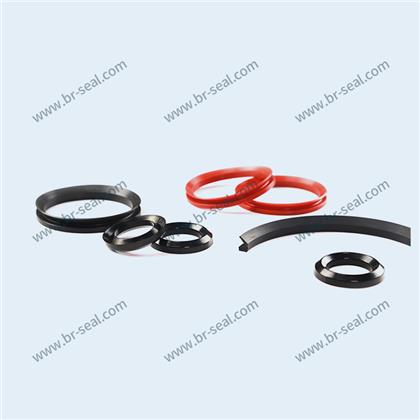

V型圈
|
品牌 |
勃茸 |
|
是否标准件 |
是 |
|
可售卖地 |
全国 |
|
备注 |
可根据客户图纸要求设计 |
基本形式为VA、VS，特殊条件可选VE、VL型。产品常规材质为NBR FKM。
水封是一种用纯橡胶制作的轴向唇型密封圈,它常用于冶金机械轧辊轴头部的轴向端面密封,水封依靠其本体对轴颈的抱紧张力使其固定在旋转轴的轴颈上,同时利用其唇部的曲绕性能和其对密封的紧迫力构成的密封副,从而防止水和杂质在轧辊运转过程中进入轧辊旋转润滑密封体,以达到保护轧辊旋转轴润滑密封装置正常工作的要求。水封利用它在旋转过程当中存在于外部的冷却水的流体离心力,将冷却水中的杂质和尘埃阻挡在密封腔体之外,同时防止密封腔体内部的油脂外漏。
优点:
1.不含金属件的纯橡胶弹性体材料;2.减轻了设计方面的工作,没有安装加工方面的要求;
3.取消了轴配合表面加工和表面精度、硬度的要求,轴表面不必淬硬;
4.安装及拆卸简单、便捷;
5.表面接触压力小,因此磨擦力小,磨擦损失及磨擦发热少,使用寿命长;
6.兼有密封和防尘作用。
水封安装:
水封安装不需设计安装倒角。V形水封为弹性体,可以被拉伸后推置于其它工件上,V形环大可拉长20%,因此易安装。在许多情况下,V形水封可以用一种简单的工具来安装,可转动轴并用无刀锋的工具推动或对中V形水封,到达正确的安装位置。
如果更换V形水封涉及到拆除几个其它工件的耗时作业,可以将V形水封切割成两个部分,放置于适当的位置后,再用粘结材料和工具将两部分连接起来,注意连接处不可拉伸。
V-rings are also called V-type water seals, which are used for end-face sealing of rotary motion. Prevent dust, water and other contaminants from entering the bearing parts or sealing system.
The basic forms are VA and VS, and VE and VL types can be selected for special conditions. The conventional material of the product is NBR FKM.
The water seal is an axial lip seal made of pure rubber. It is often used for the axial end face seal of the head of the roll shaft of metallurgical machinery. At the same time, the sealing pair formed by the bending performance of its lip and its pressing force on the seal is used to prevent water and impurities from entering the rotating lubrication seal of the roll during the operation of the roll, so as to protect the rotating shaft of the roll. Requirements for the proper functioning of the sealing device. The water seal utilizes the fluid centrifugal force of the cooling water that exists outside during the rotation process to block the impurities and dust in the cooling water out of the sealing cavity, and at the same time prevent the grease inside the sealing cavity from leaking out.
1. Pure rubber elastomer material without metal parts;
2. The design work is reduced, and there is no installation and processing requirements;
3. The requirements for shaft matching surface processing, surface accuracy and hardness are cancelled, and the shaft surface does not need to be hardened;
4. Simple and reliable installation and disassembly;
5. The surface contact pressure is small, so the friction force is small, the friction loss and friction heat are small, and the service life is long;
6. It has both sealing and dustproof functions.
Water seal installation does not need to design installation chamfers. The V-shaped water seal is an elastic body, which can be stretched and pushed onto other parts. The V-shaped ring can be stretched by 20%, so it is very easy to install.
In many cases, the V-shaped water seal can be installed with a simple tool, the shaft can be turned and a tool without a blade can be used to push or center the V-shaped water seal to the correct installation position.
If the replacement of the V-shaped water seal involves the time-consuming work of removing several other parts, the V-shaped water seal can be cut into two parts, placed in the appropriate position, and then connected with adhesive materials and tools. Be careful not to stretch the joints.
